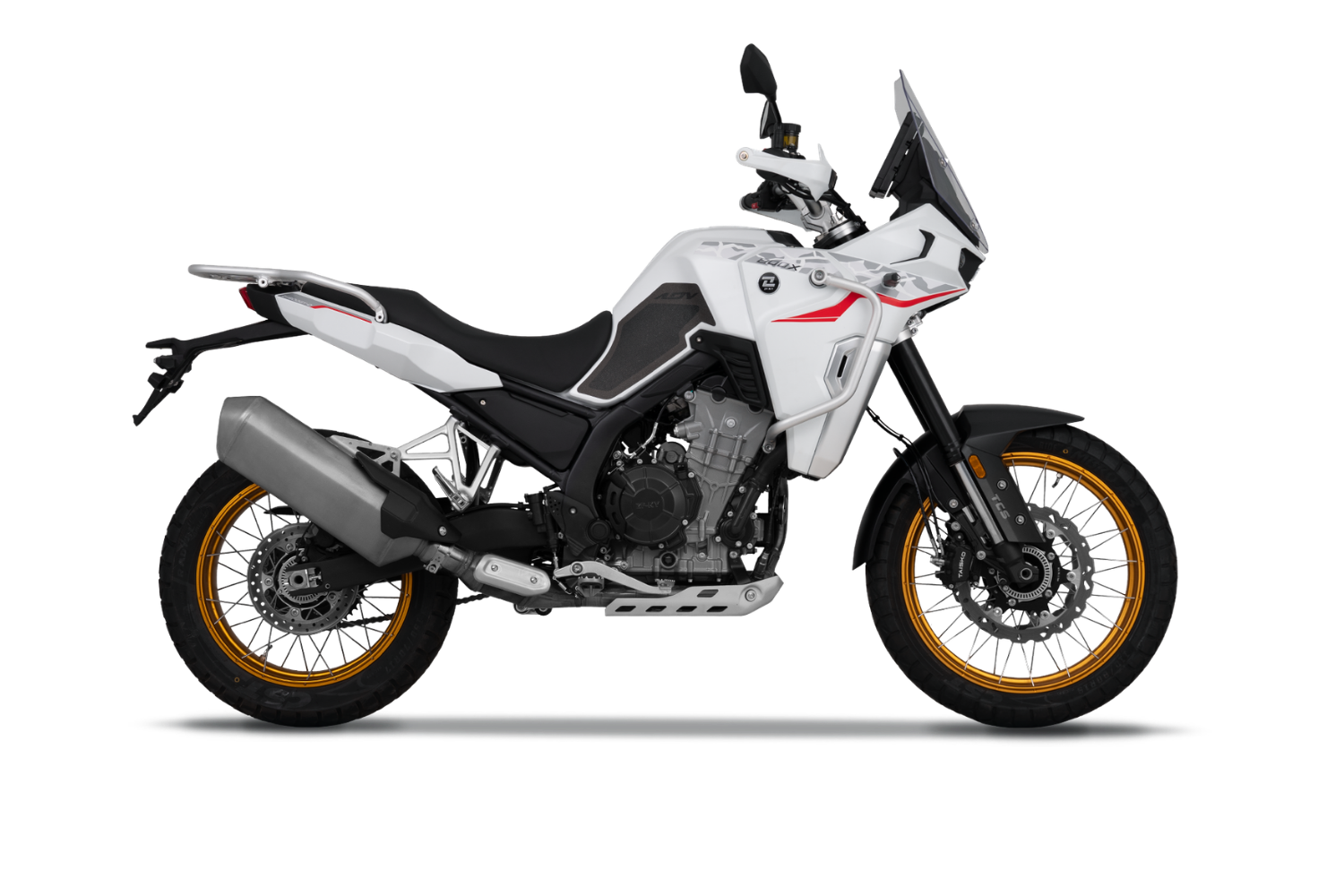

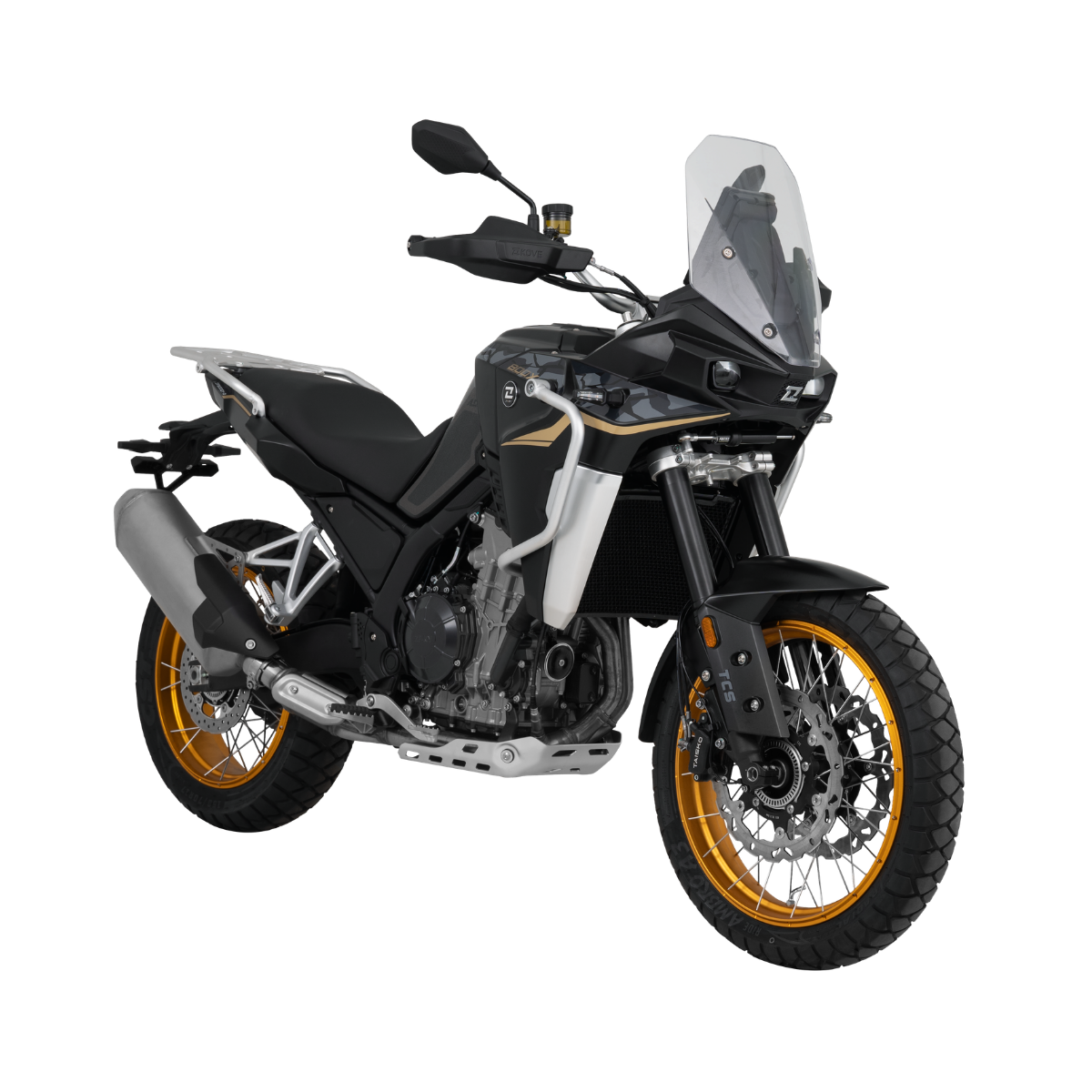

800X TOURING
COLOUR
TECHNICAL DETAILS
-
Length X Width X Height: 2230×930×1395mm
Wheelbase: 1520mm
Seat height: 826mm
Tank capacity: 22L
Curb weight: 1215kg (with 3 cases)
Ground clearance: 230mm
-
Engine type: Twin cylinder, DOHC, 8 valves, water-cooled, 75° crankshaft
Displacement: 799cc
Bore x stroke: 88.0 x 65.7mm
Compression ratio: 13:1
Max. power: 69.5kW/9000rpm
Max. torque: 79N.m/7500rpm
Fuel supply: EFI
Max. speed: 210km/h
Power mode: Eco/Sport/Rain/Off road
-
Frame type: Diamond shape, dual-wing beam, integrated chassis
Front suspension: φ43mm Preload adjustable damping, KYB
Rear suspension: Preload adjustable damping, KYB
Suspension travel: 210/210
Front brake: Dual floating discs, single direction 2-piston floating calliper
Rear brake: Single disc, 1-piston floating calliper
Front tire: 110/80-R19 (CST)
Rear tire: 150/70 R17 (CST)
Steering angle: 35°
Rake angle: 27.15°
Instrumentation: Quick shifter, TCS, Cruise control, Heated seat and grip, Steering damping
